Architectural Drawings

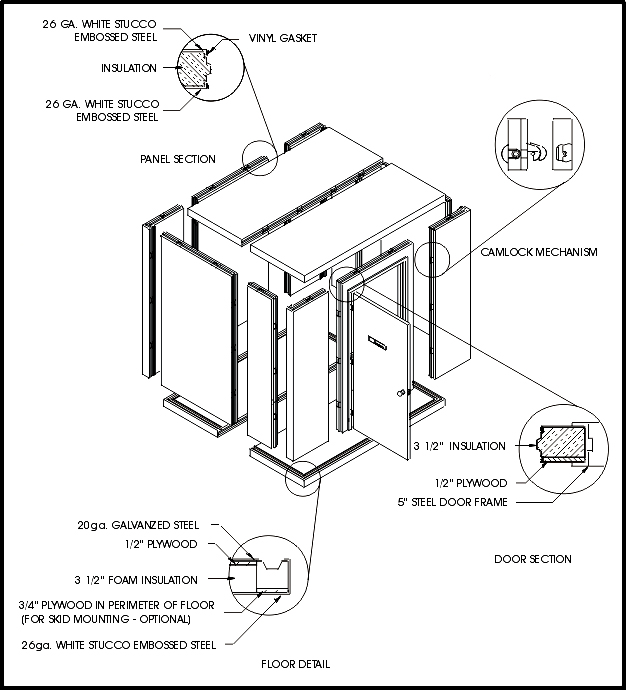

Exploded Diagram

(click for larger image)

Exploded Diagram

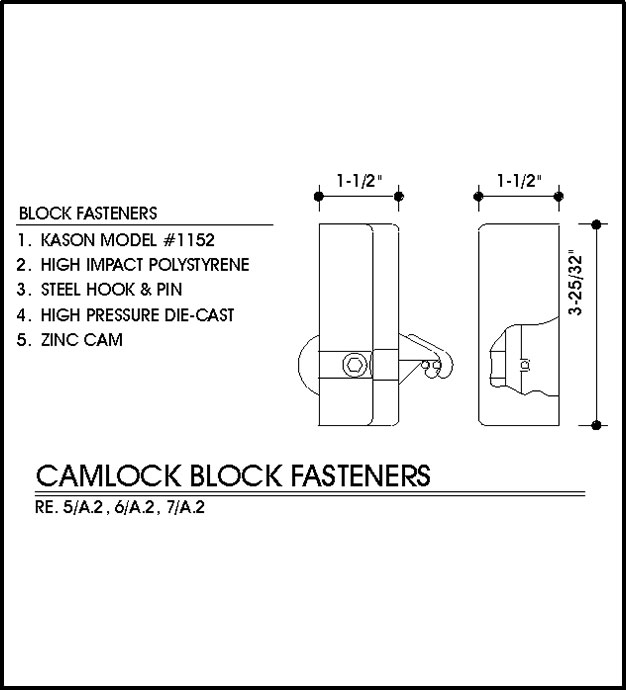

Cam Lock

(click for larger image)

Cam Lock

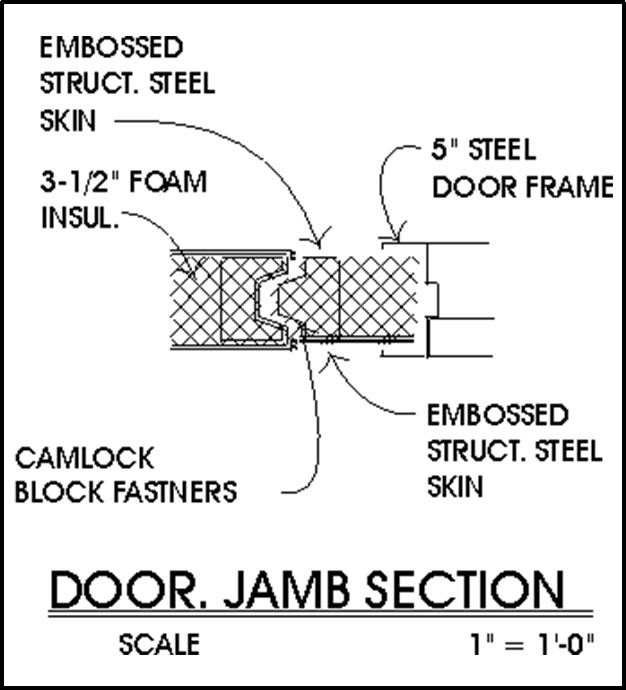

Door Jamb

(click for larger image)

Door Jamb

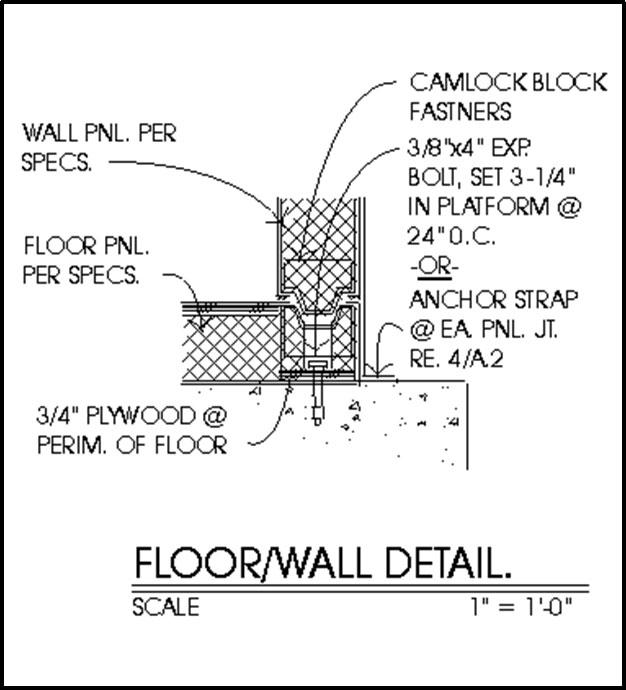

Floor & Wall

(click for larger image)

Floor and Wall

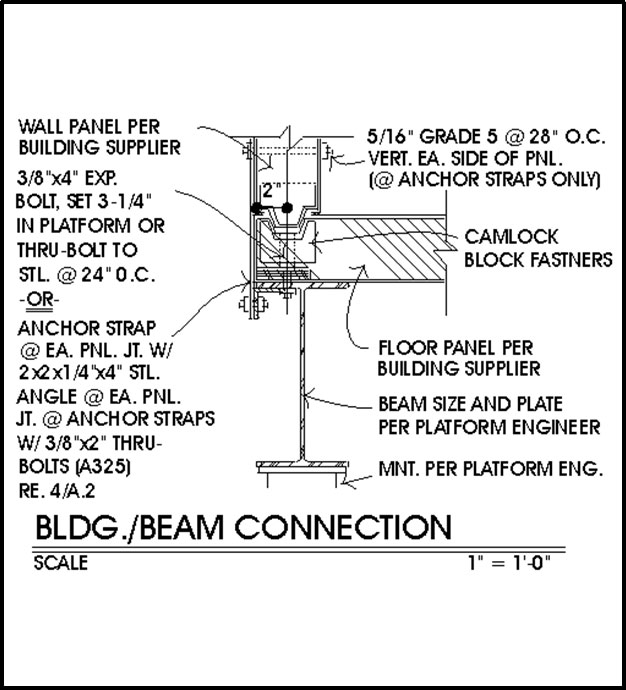

Reinforced Building Beam

(click for larger image)

Reinforced Building Beam

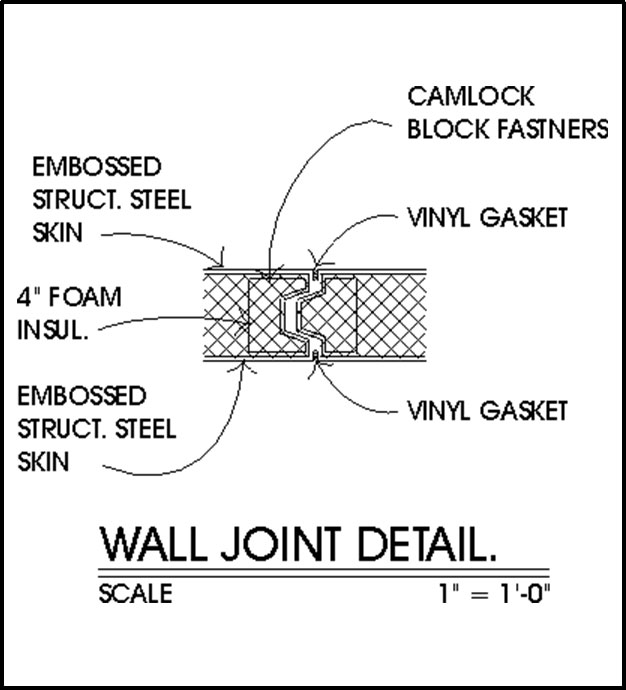

Wall Joint

(click for larger image)

Wall Joint

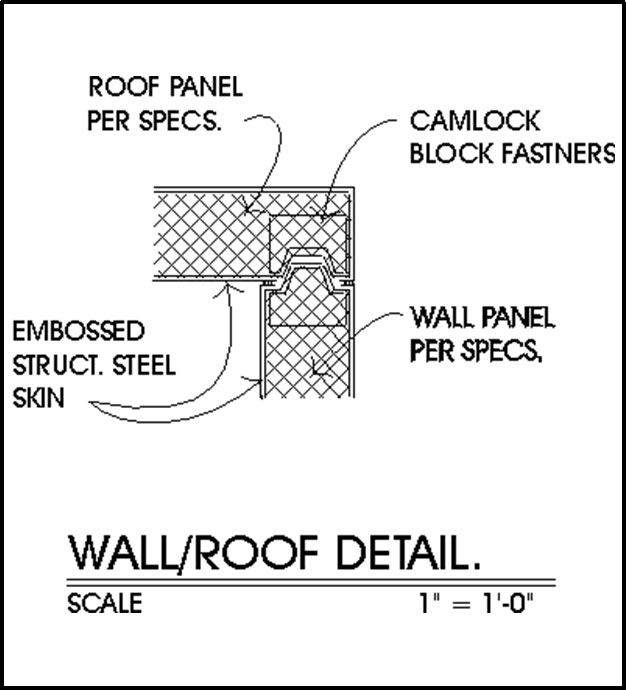

Wall & Roof

(click for larger image)

Wall Roof
